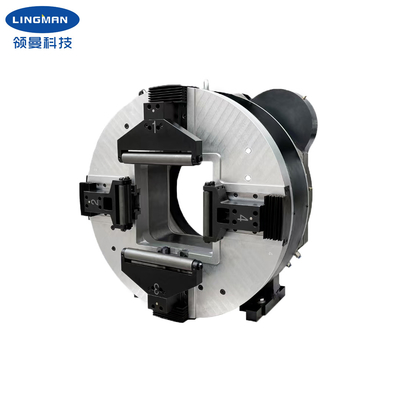

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter

الـ MOQ: 1 Set
سعر: USD 3500 set
العبوة القياسية: Wooden case
فترة التسليم: 5-8 work days
طريقة الدفع او السداد: T/T, Western Union, MoneyGram
القدرة على التوريد: 10 set per month
معلومات مفصلة
Place of Origin
China
اسم العلامة التجارية
LINGMAN
إصدار الشهادات
Provided
Model Number
F245DF
Max Clamping Force:
2.1KN
Stroke:
236mm
Package:
Wooden Cases
Allow Pressure:
0.2-0.9MPa
Clamping Range:
6-242mm
Rotational Inertia:
5.2kg.㎡
Precision:
0.05mm
Central height:
315mm
Rotating part weight:
120kg
Machine weight:
250kg
وصف المنتج

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 0

Lingman Machinery Technology (Changzhou) Co., Ltd. was established on June 8, 2020 and has passed ISO9001:2015 quality management system certification. It is an enterprise that focuses on R&D, production and sales of various power clamps and chucks for laser pipe cutting machines, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks and other power chucks. The company will create a 4,000-square-meter production base. It is estimated that 20 million yuan will be invested in production and processing equipment, plant construction and raw material costs within 2 to 3 years. The company has a professional technical R&D team and innovative R&D and design capabilities.

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 1

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 2

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 3

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 4Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 5Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 6

Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 7
