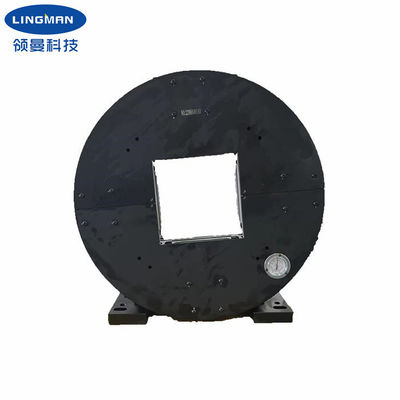

Rotary Full Stroke Pneumatic Laser Chuck for Pipe Cutting Machine
1. Description
Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.
Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.
This model laser chuck is designed for laser pipe cutting equipment, four jaw full stroke main chuck. The chuck itself can be operated as an independent rotating spindle. After the product base is fixed, it only needs to connect the supporting motor and gear, and then connect the compressed air source (0.25-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. Chuck full stroke operation, no need to adjust the position of the four jaws. The chuck adopts a fully enclosed structure with cross roller bearings. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher gripping force.
The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.
2. Performance Parameters
| Model number | F170JF |
| Claw stroke | 154mm |
| Maximum clamping force | 1.2KN |
| Alloable pressure | 0.25-0.9MPa |
| Limit speed | 200/min |
| Clamping range | φ16-φ170mm |
| Central height | 260mm |
| Rotational inertia | 1.72kg.㎡ |
| Rotating part weight | 89kg |
| Whole unit weight | 144kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H |
| F170JF | 500 | 260 | 510 | 515 | 164.5 | 100 | 440 | 175.5 | 250 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
